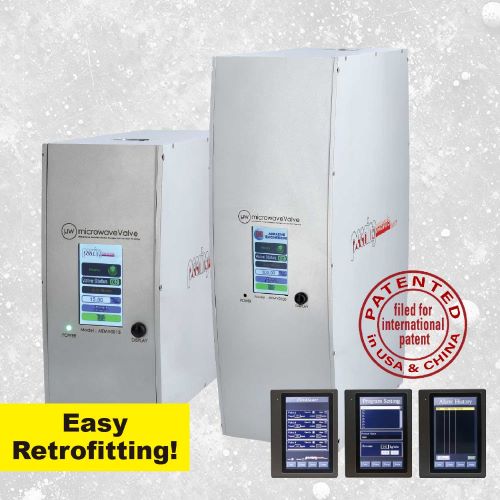

PA microwaveValve & Flow Master

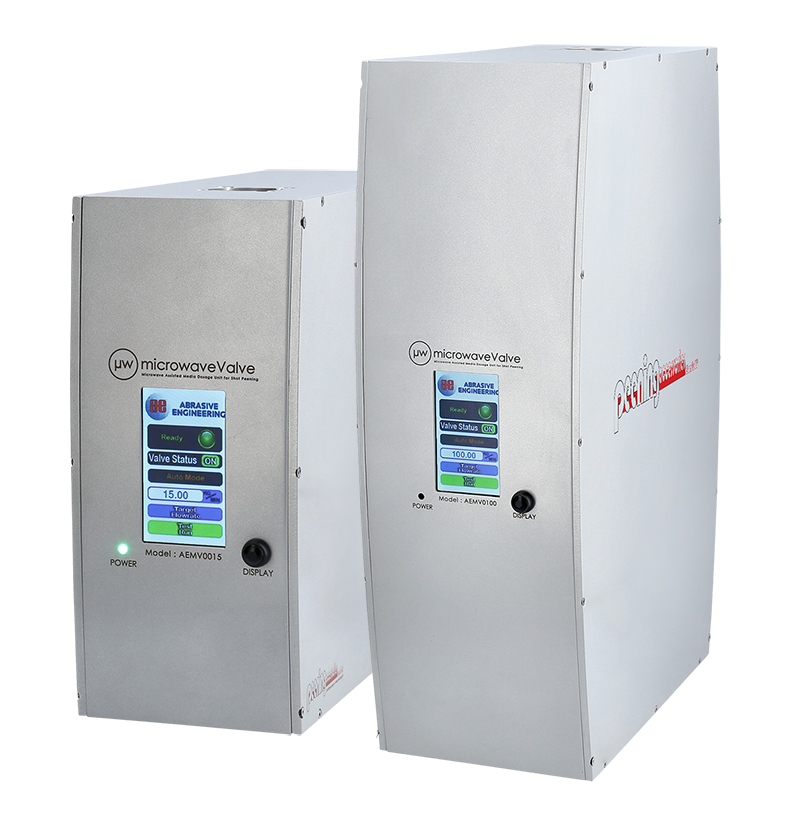

Product image for PA microwave Valve & Flow Master

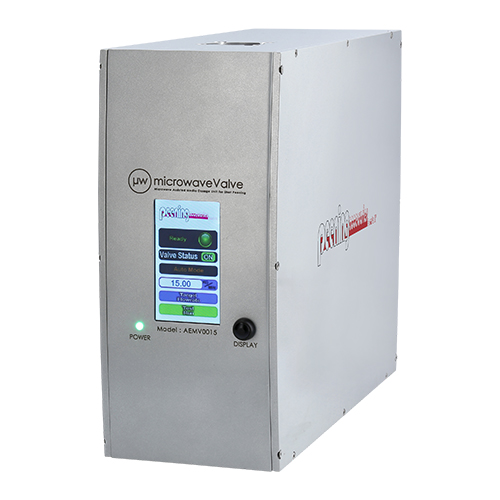

PA microwaveValve

Download detailed catalogue

Flow rate control valve for non-ferrous and ferrous media for peening and blasting machines

μWValve-15: Range 1.5-15 kg/min (ferrous)
μWValve-07: Range 0.7-7 kg/min (non-ferrous)
μWValve-100: Range 10-100 kg/min (ferrous)
μWValve-40: Range 4-40 kg/min (non-ferrous)

  • ±10% accuracy under a Suction Blast System only
  • FPGA technology, closed loop in real-time
  • Shock resistant Touchscreen for improved troubleshooting
  • Meets SAE AMS 2430 and AMS 2432 specifications
  • Digital signal: no data transmission lost
  • Only one cable per valve
  • Able to include 4 media calibrations in one valve
  • Includes a 5 meter wire (optional: 1m)
  • 24V DC
  • CE compliant
  • Patented in USA and China



PA FlowMaster - Media Flow Controller

Download detailed catalogue

Download user manual

Special Features:

  • Cost savings: One control handles up to four valves!
  • 7” touchscreen: reduces hardware button damage; flexible on design.
  • Six languages as standard configuration: English, French, German, Spanish, Japanese and Chinese. Additional languages on request.
  • Up to 64 recipes that can contain flow rate and product name
  • Instant adjustments to up to four different shot sizes (optional)
  • Instant switch from kg/min to lb/min or vice versa
  • Alarm - if connection lost to valve
  • Adjustable alarm supervision delay for starting the process

Standard Features:

  • Displays product info: flow rate, valve status, configuration, alarm, settings, recipes
  • Alarm system: flow rate upper/lower limit, connection lost
  • Closed loop system, with FPGA technology, closed loop in real-time
  • Remote commands and recorder output
  • Digital I/O and analog signal card
  • CE compliant
  • Patented in USA and Europe
